Fiber Laser Cutting Machine
Complete production line with matching sheet metal machine bed
On-site installation and training by engineers
OEM/ODM customization available
Non-standard machine models customized to requirements

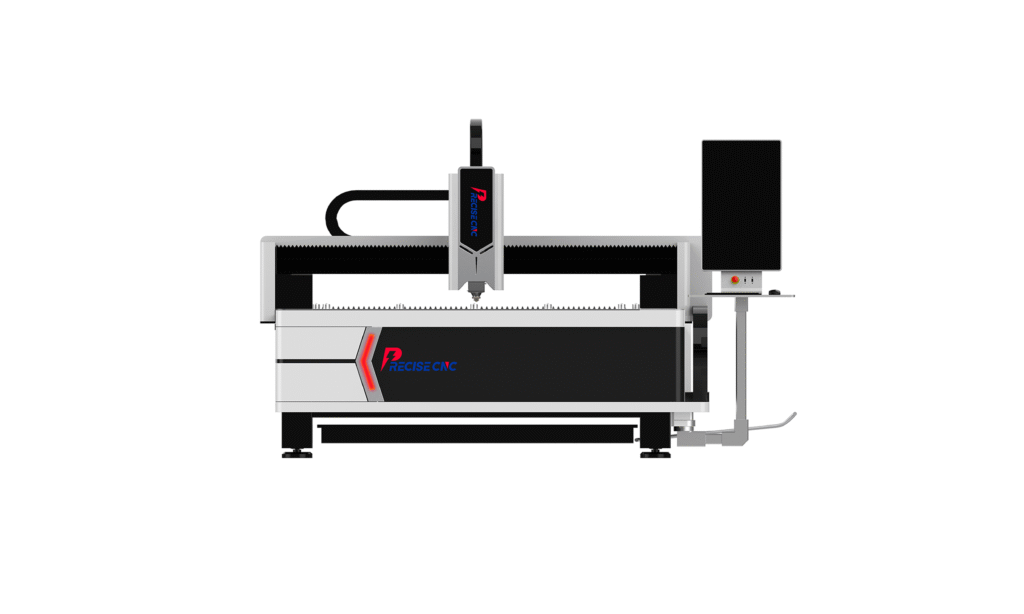

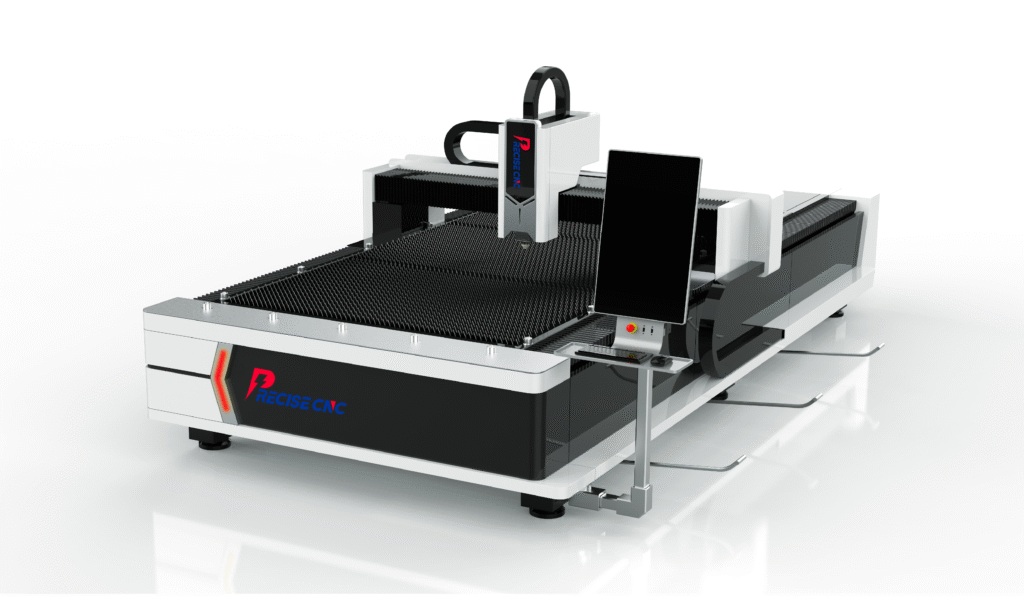

Standard Sheet Metal Fiber Laser Cutting Machine
Different Models of Fiber Laser Cutting Machines
Enclosure fiber laser cutting machine, full cover on machine, double or single working table, different kinds metals cutting. With CE/FDA/ROHS/ISO ceertificcates.
High precision fiber laser cutting machine, mainly for jewelry application, can cut golf/silver/brass/stainless steel/carbon steel/aluminum and ceramic. With CE/FDA/ROHS/ISO ceertificcates.
Open type metal sheet-tube fiber laser cutting machine, can cut both metal plate and metal pipes with one machine. With CE/FDA/ROHS/ISO ceertificcates.
Enclousre type metal sheet-tube fiber laser cutting machine, can cut both metal plate and metal pipes with one machine. With CE/FDA/ROHS/ISO ceertificcates.
Standard model metal tube laser cutting machine, tube length up to 6 meters, pipe diameter from 8 to 220mm, including round, square, rectangular, and elliptical tube shapes.
Metal tube laser cutting machinem with four or more chucks, tube length from 6 to 12 meters, diameters between 8 and 350 mm, and weights up to 1.5 tons.
Pipe/tube Bevel Laser Cutting Machine. Capable of cutting round, square, rectangular tubes and H-beam, I-beam, channel steel, angle steel, and various shaped profiles.
Steel Coil Metal Fiber Laser Cutting Machine. With stainless steel coil auto-feeding device, Achieve efficient stainless steel coil cutting. With CE/FDA/ROHS/ISO ceertificcates.
Gantry Profile Laser Cutting Machine, is capable of cutting all types of metal tubes with lengths from 6 to 15 meters, diameters from 8 to 640 mm, and weights up to 2.6 tons.
Main Configurations of Fiber Laser Cutting Machine
Fiber Laser Source
Laser source brand: China Raycus, China Max, Germany IPG. Laser power from 1500w to 30KW. The core part of fiber laser cutting machine
Cutting Head
Cutting head brand: China Bochu BLT serial cutting head, Auto-focus model. China Raytools brand auto-focus model. Both professional and high quality.
Control Borard & System
Bochu brand control board and control system. Easy to install, easy to debug, excellent performance, complete program
Plate welding lathe bed
Metal plate welding lathe bead, ensure the bed structure has stable precision and is durable and long-lasting.
Integrated aviation aluminum crossbeam
High strength and lightweight, excellent corrosion resistance, good processing performance, and deformation resistance
Control System
Bochu brand control board and control system. Easy to install, easy to debug, excellent performance, complete program
Rack and Pinion
Using well-known domestic and foreign brands, like China Taiwan YYC, Italy PEK brand, high quality and accuracy.
Guide rail
Using well-known domestic and foreign brands, like China Taiwan HIWIN, Italy PEK brand, high quality and accuracy.
Fire-resistant brick
It has thermal stability, protecting the safe operation of the bed structure and preventing the bed from thermal deformation.
Crossed knife strips
Increase the distribution density and prevent small pieces from falling off.
Z axis linear module
High precision, dust-proof, screw rod lubrication, and enhanced response speed of the cutting head.
Water chiller
China prefessional and high quality brand, Hanli and S&A brands, Dual temperature and dual control
Cutting Samples of Fiber Laser Cutting Machine
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet.
Applications of Fiber Laser Cutting Machine
Aerospace Industry
Automotive Manufacturing
Railway Facilities
Furniture Manufacturing
Architecture Industry
Agriculture Machinery
Shipbuilding Industry
Petroleum Industry
Kitchenware Manufacturing
About Us
Jinan Precise CNC Equipment Co., Ltd. was founded in 2010, located in Licheng District, Jinan City. It is a high-tech enterprise integrating R&D, production and sales, focusing on ultra-fast laser precision processing.
Our main products are metal laser cutting machine, glass laser cutting machine, glass laser drilling machine, laser marking machine, laser welding machine, laser cleaning machine, laser engraving machine, laser cladding machine, laser hardening machine and other laser automation equipment.These are used in precision parts processing for automotive, 3C electronics, photovoltaic, medical, and new energy industries.
Testimonials of Fiber Laser Cutting Machine
Certifactes of our Fiber Laser Cutting Machine
